High-speed High-precision metal slitting line
A metal slitting line is a pivotal piece of equipment in the metal processing sector, engineered to slice large metal coils into narrower strips or smaller coils. This operation is fundamental in transforming raw metal into forms usable for a wide range of manufacturing purposes. Here's an in-depth examination of metal slitting lines:
Components of a Metal Slitting Line:

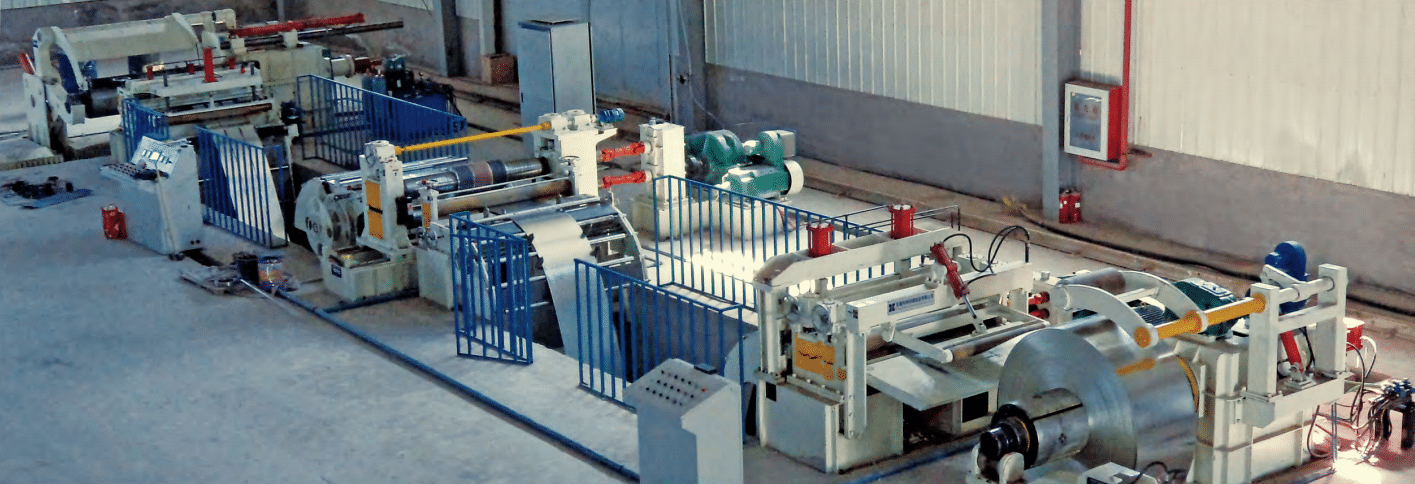

The sequence of components in a metal slitting line, from right to left, is as follows: Entry Coil Car → Decoiler → Press and Pinch Device → Hydraulic Cutter → Looper 1 → Side Guide Device → Slitter → Scrap Winder → Looper 2 → Tension Stand → Recoiler → Exit Coil Car.

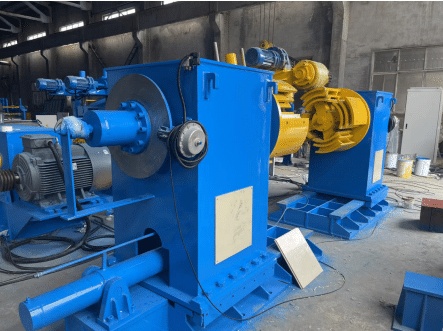

1. Decoiler: The decoiler is the station where the large metal coil is loaded. It unwinds the coil, feeding the metal through the slitting line.

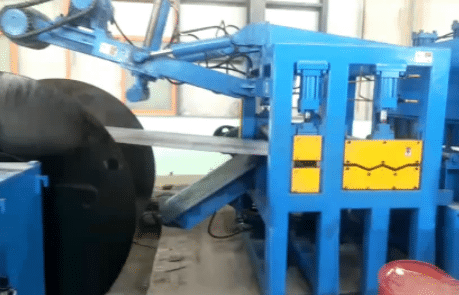

2. Straightener: The straightener's role is to ensure the metal is smooth and even before it proceeds to the slitting area. This step is vital to avert damage to the slitting knives and to uphold the integrity of the finished product.

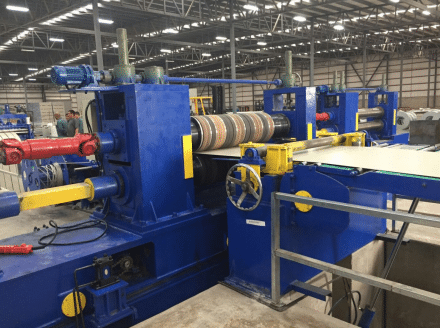

3. Slitting Section: As the core of the slitting line, this section houses a set of precision knives or blades that cut the metal to the specified widths. The knives are calibrated to meet the exact width criteria, allowing the metal to be divided into several strips at once.
4. Edge Trimming: In some cases, the edges of the metal strips are trimmed to eliminate defects or to ensure a cleaner edge profile.

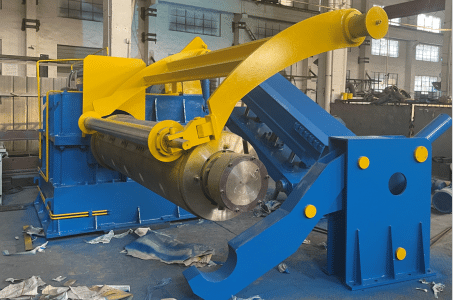

5. Recoiler: Once slit, the narrow strips are rewound into coils by the recoiler. This process typically occurs under regulated tension to guarantee the uniformity and quality of the coils.
6. Edge Finishing: The edges of the slit metal may undergo various finishing methods, such as crimping or deburring, to prevent unraveling and enhance the safety and aesthetics of the product.
7. Quality Control: The slitting line is often fitted with sensors and cameras to oversee the quality of the slitting operation, ensuring that the metal strips conform to the specified standards.
