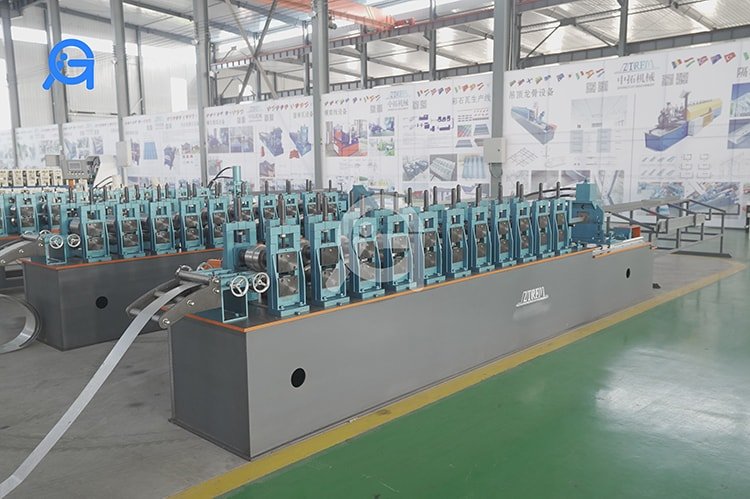

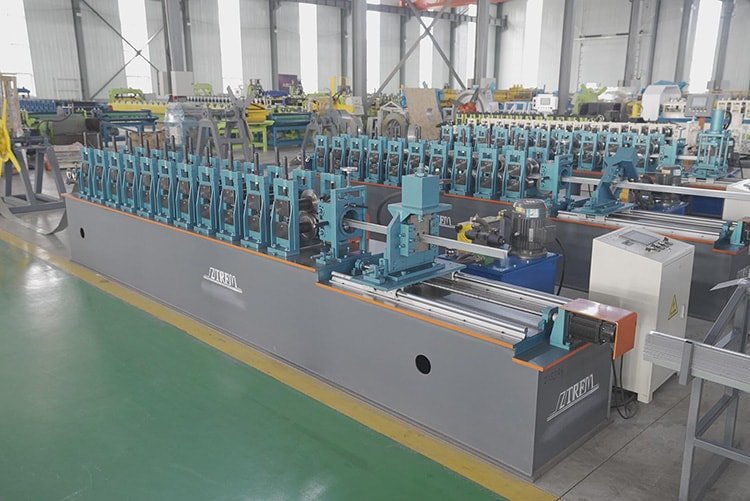

Ceiling Roll Forming Machine

The ceiling profile keel is widely used in daily life.The ceiling keel is the ceiling we often see, especially the modeling ceiling, which is made of a keel and then covered with plasterboard. The keel is made of light steel and is used as the main material for the ceiling.We can manufacture different profiles of the customer’s requirement.

1.Working flow of floor decking roll forming machine

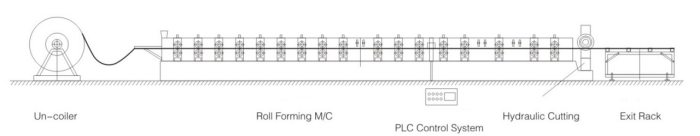

Decoiler---feeding device---roll forming machine---cutting part---products receiving table

2.Technical specification

Technical Parameters

Raw material of the coilGalvanized steel

Material thickness0.8mm, 0.9mm, 1.0 mm

Cutting lengthadjustable

Work voltage380V, 50Hz, 3Phase (as your requirement)

3.Components of ceiling roll forming machine

Part 1Decoilerset1

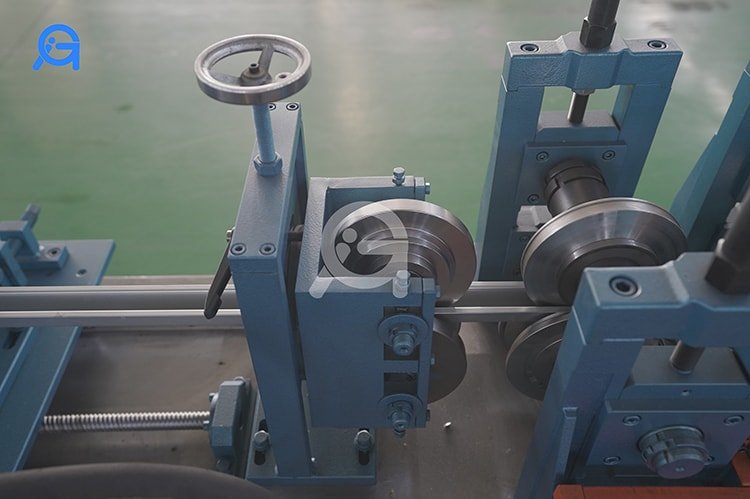

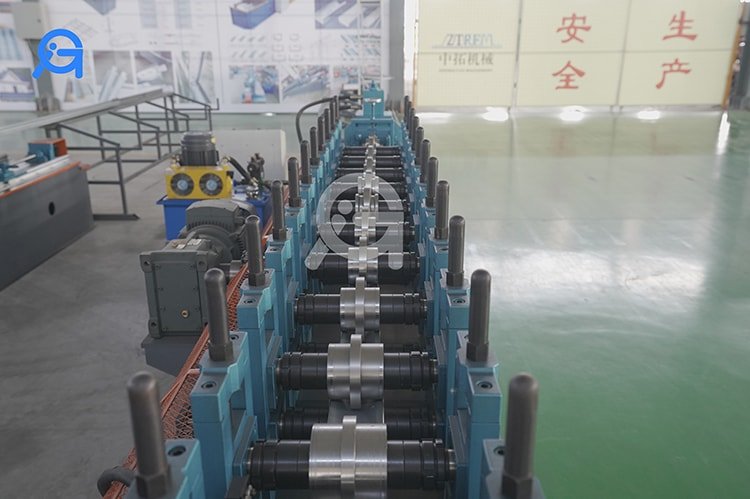

Part 2Main roll forming machineset1

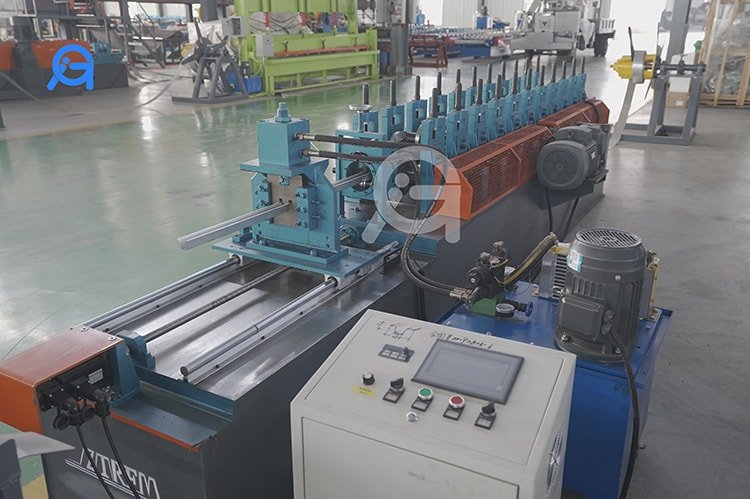

Part 3PLC control stationset1Delta brand

Part 4Hydraulic stationset1

Part 5Cutting systemset1

Part 6Products receiving table set1

4.Profile drawings
