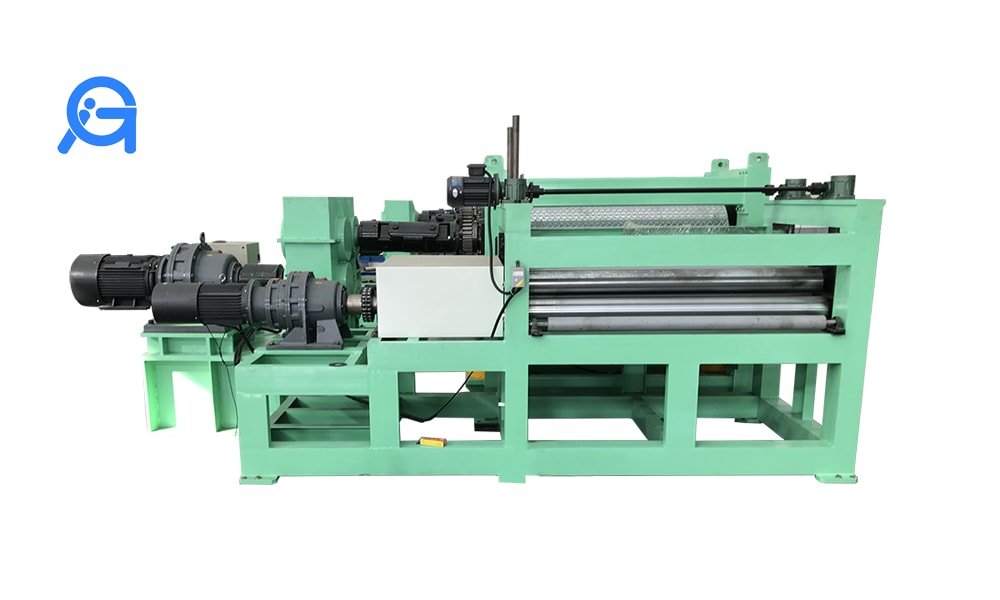

Embossing roll forming machine
Embossing roll forming machine is a stamping process to produce various designed patterns in the metal sheet by passing the sheet in roll or a strip of metal between rolls of the desired patterns.Metal sheet embossing machines are designed to press different types of designs on metal sheet.GEIT GROUP can provide you with high quality metal embossing roll forming machine.It can be used to make various types of sheet which you need. So if you have the requirements about this machine,you can contact with me at any time.
1.Working flow of the embossing roll forming machine
feeding device — embossing machine — flatting & Leveling machine —products receiving table
2.Technical specification
Technical Parameters
Raw material of the coilMild steel, stainless steel, aluminum
Material thicknessmild steel 1-6mm, stainless steel0.8-3.0mm,aluminum 0.5-3.0mm
Feeding width1250mm max
Work voltage220V,50Hz,3Phase
Dimension6000mm*6800mm*1700mm
weightAround 18tons

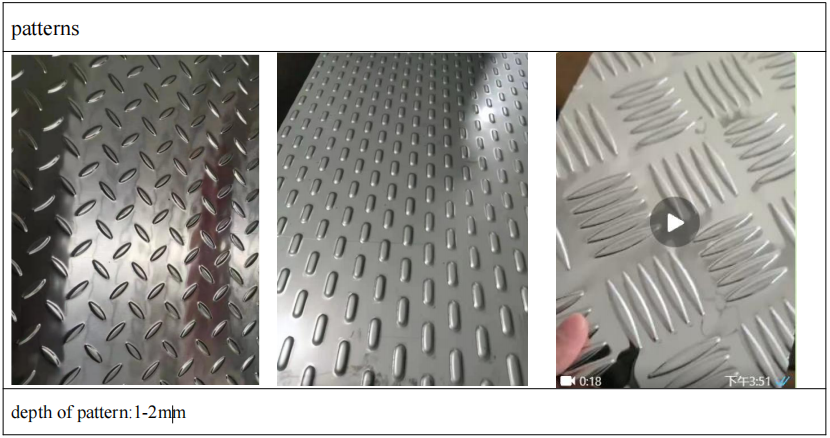

3.Patterns
(Also you can provide me your patterns,We can design as your requirements)
