Strut Channel Roll Forming Machine 4 In 1 For USA

The strut Channel roll forming machine is a powerful and versatile piece of equipment capable of meeting the production needs of strut channels in solar photovoltaic mounting systems. It boasts features like high precision, long service life, ease of operation, and provides various optional features and customization options.

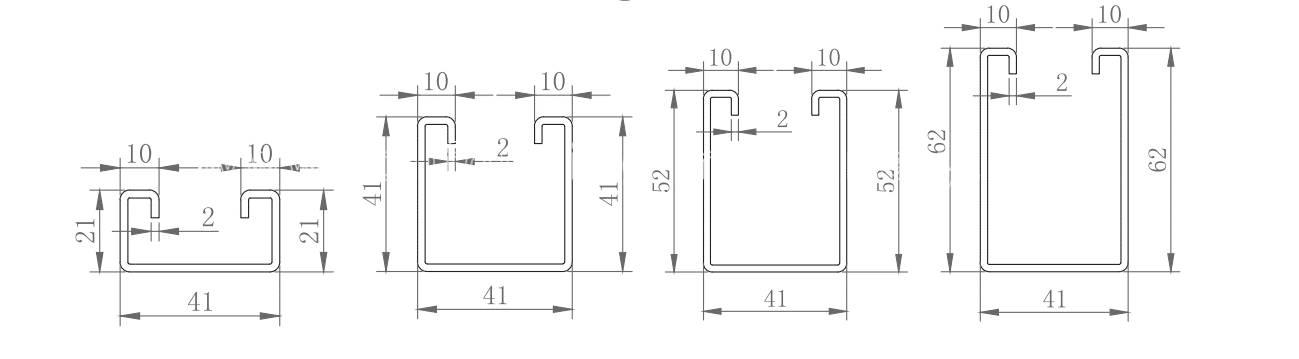

Profile Drawing

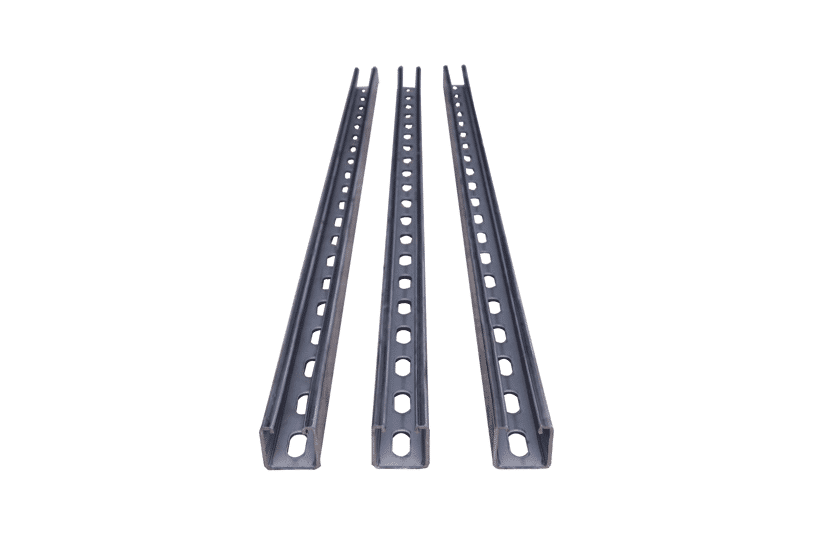

Sample Show

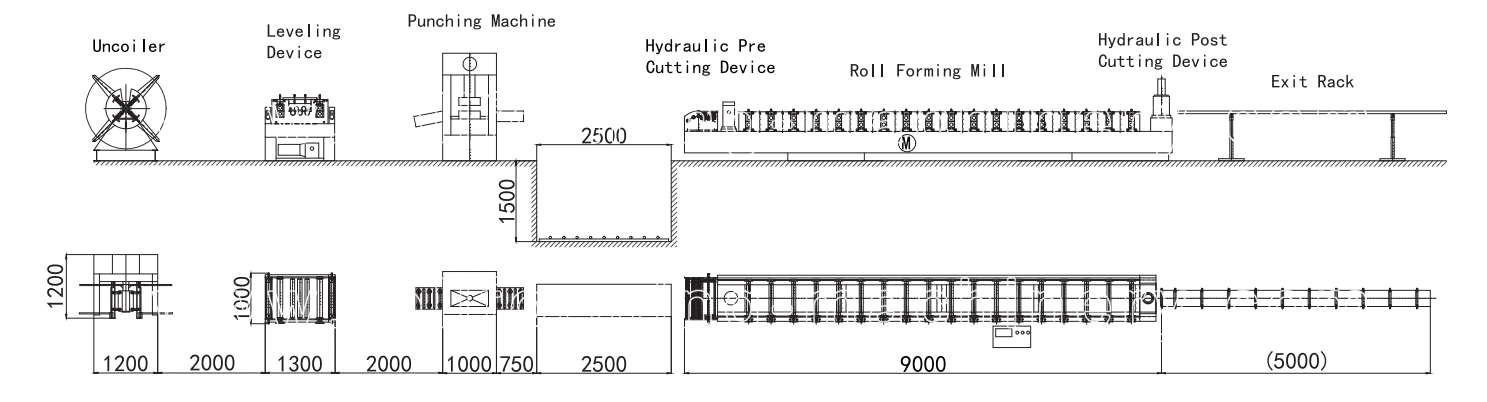

Work Flow

Equipment Advantages

1.The Production Line Uses High-Speed Punching Machine And Skd11 Material Mold,So As To Ensure That 12 Meters Of Board Can Be Punched In One Minute.

2.The Production Line Can Produce Four Different Height Profiles,So As To Achieve Multi-Specification Production And Less Floor Space.

3.In Order To Reduce The Deformation Of The Incision,The Post-Cutting Device Of This Equipment Adopts The Method Of Shearing From Bottom To Top.

Material of Strut Channel Roll Forming Machine 4 In 1 For USA(Luxury Type)

1.Material Thickness: 2.0-2.5mm

2.Applicable material:GI/GL/PosMAC

3.Material Yield Strength :235-390Mpa

4.Feeding width:About 98-179mm
