Dovetail Shape Floor Steel Decking Making Machine – Advanced Roll Forming for Long-Span, High-Performance Decking Solutions
The Dovetail Shape Floor Steel Decking Making Machine is engineered to produce high-quality, structural metal decking with a unique dovetail profile, designed for long spans and superior strength. The key advantage of this innovative profile is that the underside of the panel offers a finished ceiling appearance, making it an ideal solution for buildings requiring both structural integrity and aesthetic appeal. This decking is versatile, allowing for easy attachment of lighting, HVAC systems, plumbing, and electrical wiring.
What Makes Dovetail Decking the Perfect Solution for Modern Construction?
· Combination of Structural and Architectural Benefits: The dovetail decking system seamlessly integrates the structural function of a roof deck with the visual appeal of an architectural ceiling, offering a high-performance solution for commercial and residential buildings.
· Ideal for Large-Scale Projects: Designed to provide excellent support for long-span applications, the dovetail profile can handle a range of construction needs.
Processing Flow of Dovetail Steel Decking Roll Forming Machine:
1. Uncoiling: The steel coil is uncoiled and fed into the system.
2. Guide Feeding: The material is precisely aligned for the next forming process.
3. Main Roll Forming: The metal sheet is shaped into the dovetail profile using advanced roller technology.
4. Hydraulic Cutting: The decking is cut to the desired length using a high-precision hydraulic cutting system.
5. Product Collection: The finished product is collected for further use.
Advantages of Dovetail Steel Bearing Plate in Construction:
No Need for Formwork and Support: The dovetail steel decking system eliminates the need for traditional formwork and supports during concrete floor slab pouring, providing greater construction flexibility. Contractors can start construction from any floor level, instead of following the bottom-to-top process.
Cost-Effective Concrete Design: The dovetail composite floor does not require positive moment reinforcement, which reduces material costs and speeds up the construction process.
Enhanced Earthquake Resistance: The wedge-shaped concrete blocks between the ribs of the dovetail decking provide excellent resistance to deformation caused by earthquakes, improving the overall structural integrity of the building.
Mechanical Performance & Economical Spans: The complex wedge-section resistance moment of the dovetail plate enhances its mechanical performance, offering more economical span solutions compared to traditional floor systems.
Concrete Savings: The dovetail composite floor system uses less concrete than conventional concrete floors, optimizing material usage.
Formwork and Time Savings: The dovetail composite system saves on both formwork and construction time, reducing costs and increasing project efficiency.
No Additional Fireproof Layer Required: Unlike traditional concrete floors, the dovetail composite system does not require an additional fireproof layer, making it a more cost-effective and efficient solution.
Dovetail Suspension System: The system includes a dovetail suspension mechanism, enabling easy hanging of pipelines and equipment between the slab ribs. This eliminates the need for pre-embedded parts and saves both labor and time.
Safe Working Platform: The dovetail steel bearing plate provides a safe working platform before the concrete slab is poured, ensuring worker safety during construction.
Why Choose Our Dovetail Floor Steel Decking Making Machine?
Our floor steel decking machine stands out from the competition due to its superior features:

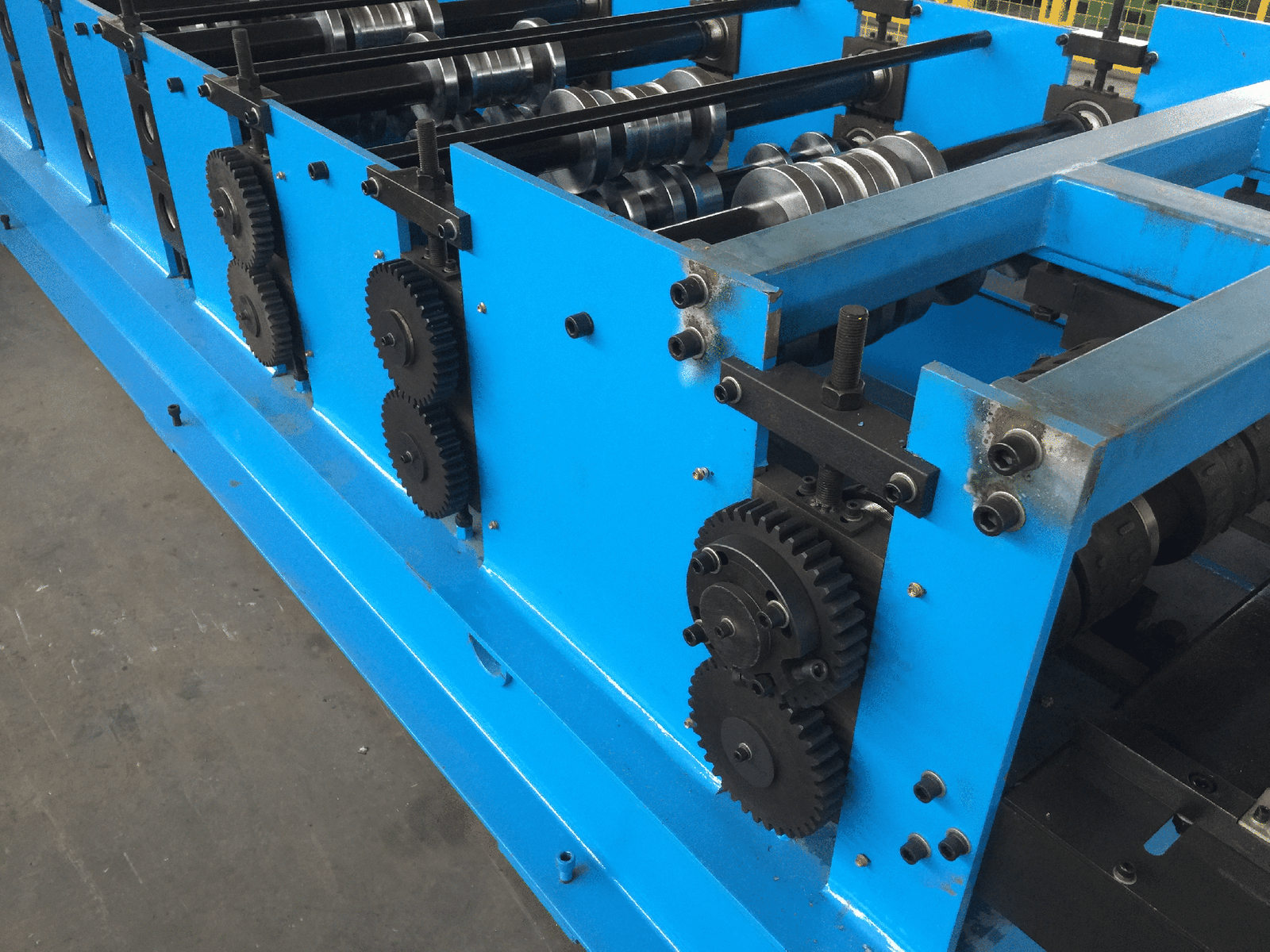

Advanced Gear Mechanism: We add three pairs of gears in the first three stations of the roller system. This ensures the rollers operate at the same speed, providing consistent power to both the upper and lower rollers, optimizing feeding efficiency.

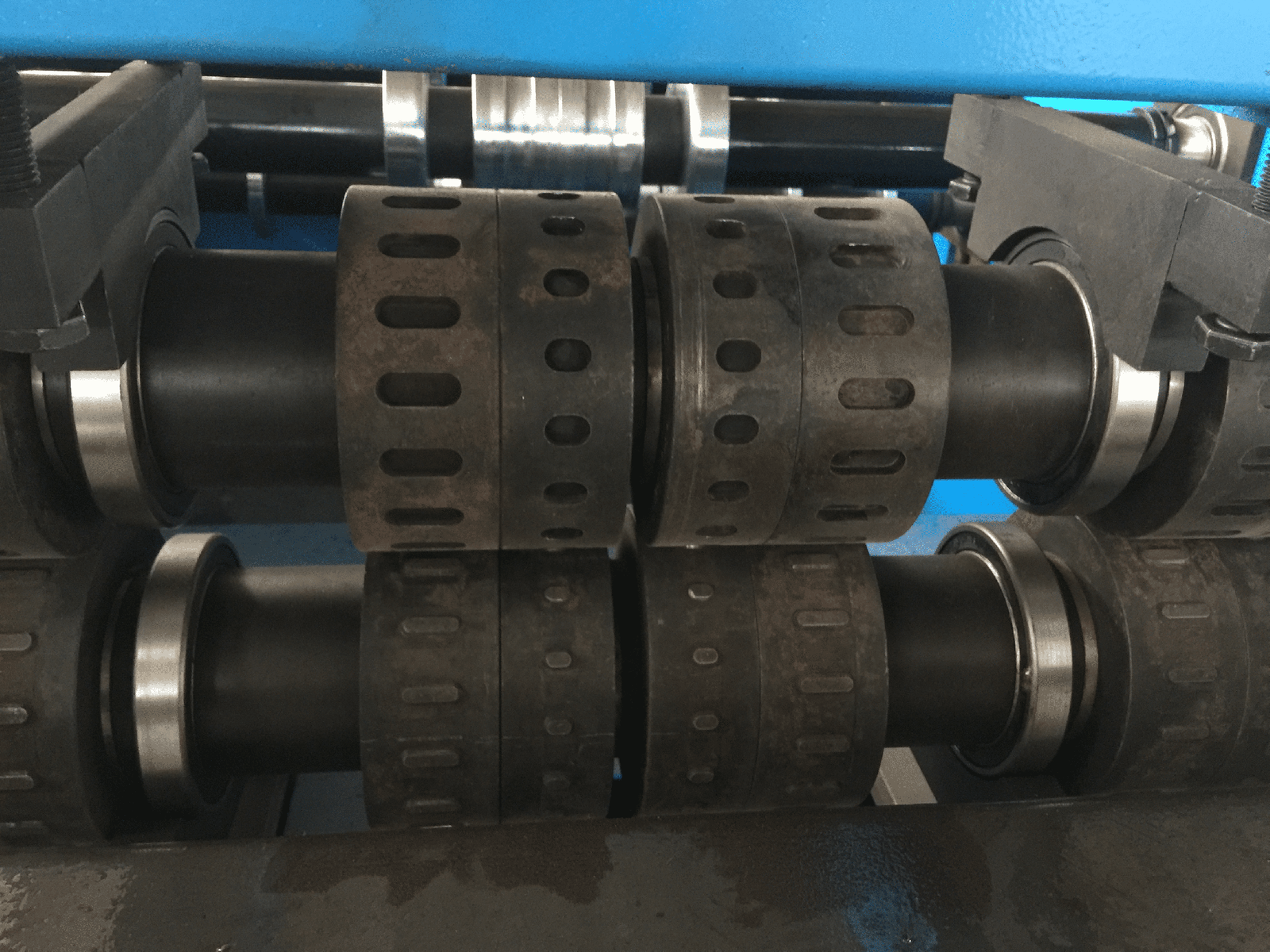

Enhanced Embossing Rollers: Our embossing rollers feature additional bearings that brace the shaft to prevent roller shaft abrasion, ensuring longer machine life and reducing maintenance costs.Final Thoughts on Dovetail Shape Floor Steel Decking
The Dovetail Shape Floor Steel Decking Making Machine is the ideal solution for construction projects requiring long-span decking, aesthetic ceilings, and sustainable building materials. With its cost-saving features, enhanced earthquake resistance, and versatility, it represents the future of floor steel decking technology.
