racking system machines

GEIT GROUP can provide our customers all kinds of racking system machines,such as upright pillar machine,box beam machine,cross beam machine and so on.

Upright pillar 、box beam and cross beam all of important part for rack system.The column sheet of the storage rack is composed of two columns, plus corresponding cross braces and diagonal braces. The role of storage heavy-duty shelf columns is as important as that of beams. They are essential for heavy duty storage racks.

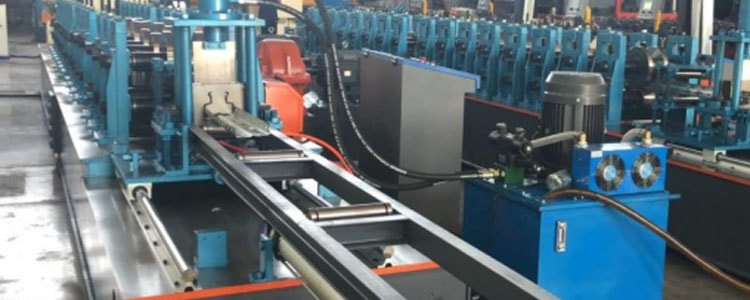

1.Working flow of Upright Roll Forming Machine

Decoiler----punching machine-----feeding device---roll forming machine---cutting part---products receiving table

2.Technical specification

Technical Parameters

Raw material of the coil：Galvanized steel

Material thickness:0.8-2.5mm

Cutting length:adjustable

Work voltage:380V,50Hz,3Phase

3.Components of Upright Roll Forming Machine

Part 1  3T Manual Decoiler

Part 2  Punching machineset

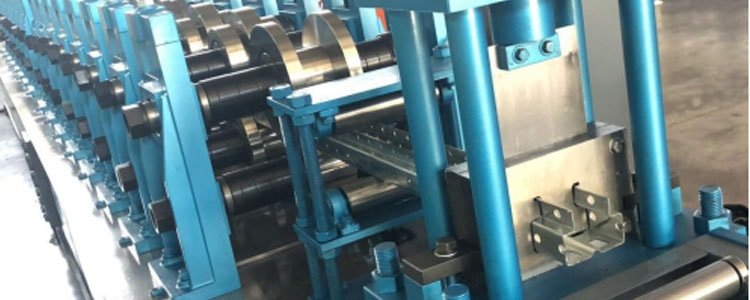

Part 3  Main roll forming machine

Part 4  PLC control station

Part 5  Hydraulic Station

Part 6  Cutting part

Part 7  Products receiving table Regular type length 3m

4.Profile drawings

Profile drawing(we can design as customer's profile drawing)
