Slitting and cut to length line

Slitting and cut to length line is designed for longitudinal and cross cutting of metal sheet.

The slitting production line is mainly used to cut various wide steel strips into a certain width, and then coil them to meet the requirements of welded pipes and cold-rolled sections.

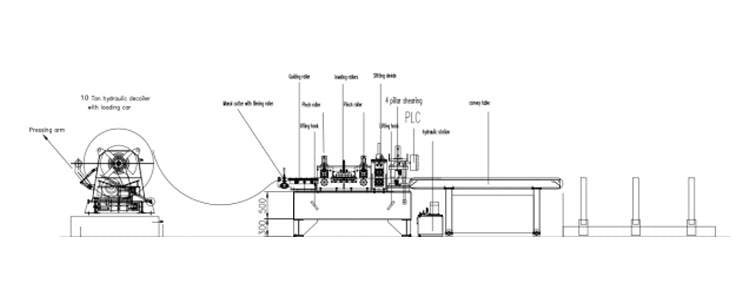

1. Production line layout and process flow

Decoiler--Feeding--Slitting--Cutting To Length--Transport Platform--Receiving Table

2.Technical specification

- Decoiler Type: Hydraulic power

- Working Type: Active Type

- Loading Capacity: 5 Tons

- Coil Inner Diameter: φ450-700mm(Adjustable)

- Coil Outer Diameter: Max. φ1500mm

- Coil Width: Max. 1500mm

- Loading Power: 1.5 kW

- Driving Power:3 kW

- Hydraulic Power: 3 kW

- With brake system

- Uncoiling Speed: 0-20 m/min

3.Components of slitting and cutting to length line

Part 1  5t hydraulic decoiler

Part 2  Main cut to length machine

Part 3  Transport platform

Part 4  Receiving table

Part 5  Tools cabinet
